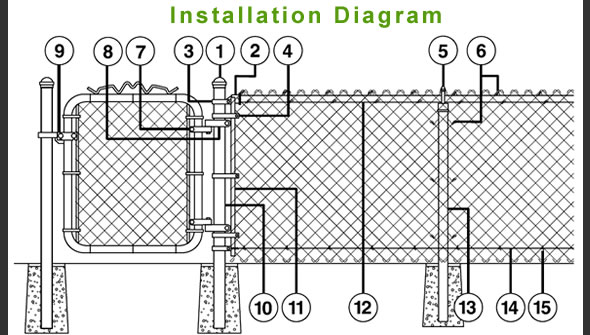

2 -- Rail End
One For Each End Post
One For Each Gate Post
Two For Each Corner Post
3 -- Brace Band
One For Each End Post
Two for Each Corner Post
4 -- Tension Band For Each End Post
Use 3 pieces for: 3' - Use 4 pieces for: 5' - 5 pieces for 6' (Same for Gate Post. Double for Corner Post.)
5 -- Line Post Top (ITOP)
One For Each Line Post
7 -- Gate Frame Hinge
Two For Single Swing Gate
Four for Double Swing Gate
8 -- Gate Post Hinge
Two For Single Swing Gate
Four for Double Swing Gate
9 -- Gate Fork Latch
One For Each Single Swing Gate
Top Rail Sleeve
1 for each length of plain end top rail. Not needed for swedged end top rail.
1 3/8 Gate Corner
Double Wheel
For Rolling Gate
6" and 8" Available
Two Way Caps
One Way Caps
Concave Adapter For Top Rail
Can be Attached to Two Way and One Way Caps
